High Power K1 Single Color

› Products LED _ Single Color

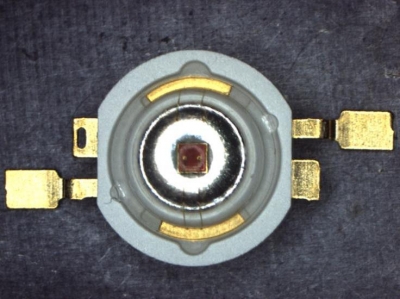

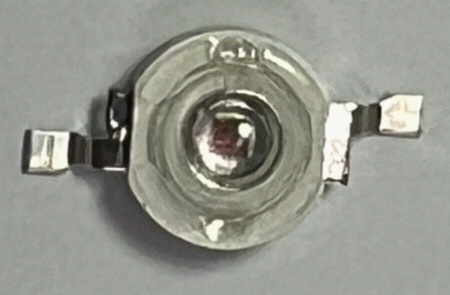

High Power Emitter K1 Single Color
Features

◎Long operating life ◎Energy efficiency ◎ Low thermal resistance

◎Compact design ◎Instant light◎Fully dimmable

◎No UV ◎Superior ESD protection ◎ROHS compatibility

Production Code	Color	Dominant Wavelength λD(nm)	DC Forward Current mA	Forward Voltage V(Typ.)	Radiometric Power Lm/mW (Typ.)	SPEC Download
THSP-CLY	Royal Blue	450~460nm	350	3.3	650mW
THSP-DLY	Royal Blue	450~460nm	700	3.6	1100mW
THSP-CLB	Blue	455~475nm	350	3.3	30Lm
THSP-DLB	Blue	455~475nm	700	3.6	50Lm
THSP-CLC	Cyan	495~515nm	350	3.4	80Lm
THSP-DLC	Cyan	495~515nm	700	3.6	135Lm
THSP-CLG	Green	515~535nm	350	3.4	120Lm
THSP-DLG	Green	515~535nm	700	3.6	195Lm
THSP-CLA	Amber	585~597.5nm	350	2.2	75Lm
THSP-DLA	Amber	585~597.5nm	700	2.4	120Lm
THSP-CLR	Red	615~630nm	350	2.2	65Lm
THSP-DLR	Red	615~630nm	700	2.4	125Lm
THSP-CLP	Crimson	650~670nm[1]	350	2.2	450mW
THSP-DLP	Crimson	650~670nm[1]	700	2.4	750mW

[1] Peak Wavelength λp
