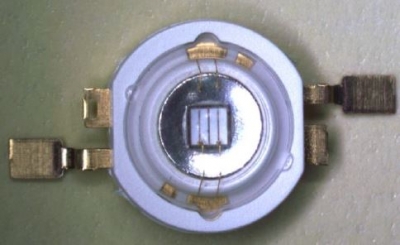

High Power Emitter K1 UV
Features
◎Instant light (less than 100ns) ◎Low-temp. & lead free reflow soldering
◎RoHS compliant
◎Cool beam, safe to the touch
|
Production Code
|
Color
|
Dominant Wavelength λD(nm)
|
DC Forward Current mA
|
Forward Voltage V(Typ.)
|
Radiometric Power Lm/mW (Typ.)
|
SPEC Download
|
|
THSM-CLU
|
UV
|
390~410nm
|
350
|
3.3
|
550mW
|
.png) |
High Power Emitter K1 IR
Features
◎ Long operating life ◎ Energy efficiency ◎ Low thermal resistance
◎ Compact design ◎ Instant light ◎ Fully dimmable
◎ Superior ESD protection ◎ ROHS compatibility
|
Production
Code
|
Color
|
Dominant
Wavelength
|
DC Forward
Current
|
Forward
Voltage
|
Radiometric
Power
|
SPEC
Download
|
|
λP(nm)
|
mA
|
V(Typ.)
|
mW(Typ.)
|
|
THSP-DLI
|
IR
|
720~740nm
|
700 mA
|
2.1
|
450mW
|
|
|
THSP-DLI
|
IR
|
840~870nm
|
700 mA
|
1.8
|
500mW
|
|
THSP-ELI
|
1000 mA
|
1.8
|
700mW
|
|
THSP-DLI
|
IR
|
930~960nm
|
700 mA
|
1.8
|
350mW
|
|
THSP-ELI
|
1000 mA
|
1.8
|
630mW
|
